OASIS: Observation-Action Space Alignment via \(SE(3)\) Trajectory Prediction for Robotic Manipulation

Xinzhe Chen^*, Sihua Ren^*, Liqi Huang, Haowen Sun, Mingyang Li, Xingyu Chen, Zeyang Liu, Xuguang Lan^†

National Key Laboratory of Human-Machine Hybrid Augmented Intelligence
Institute of Artificial Intelligence and Robotics, Xi'an Jiaotong University

^*Equal contribution. ^†Corresponding author.

Demos Paper Code coming soon

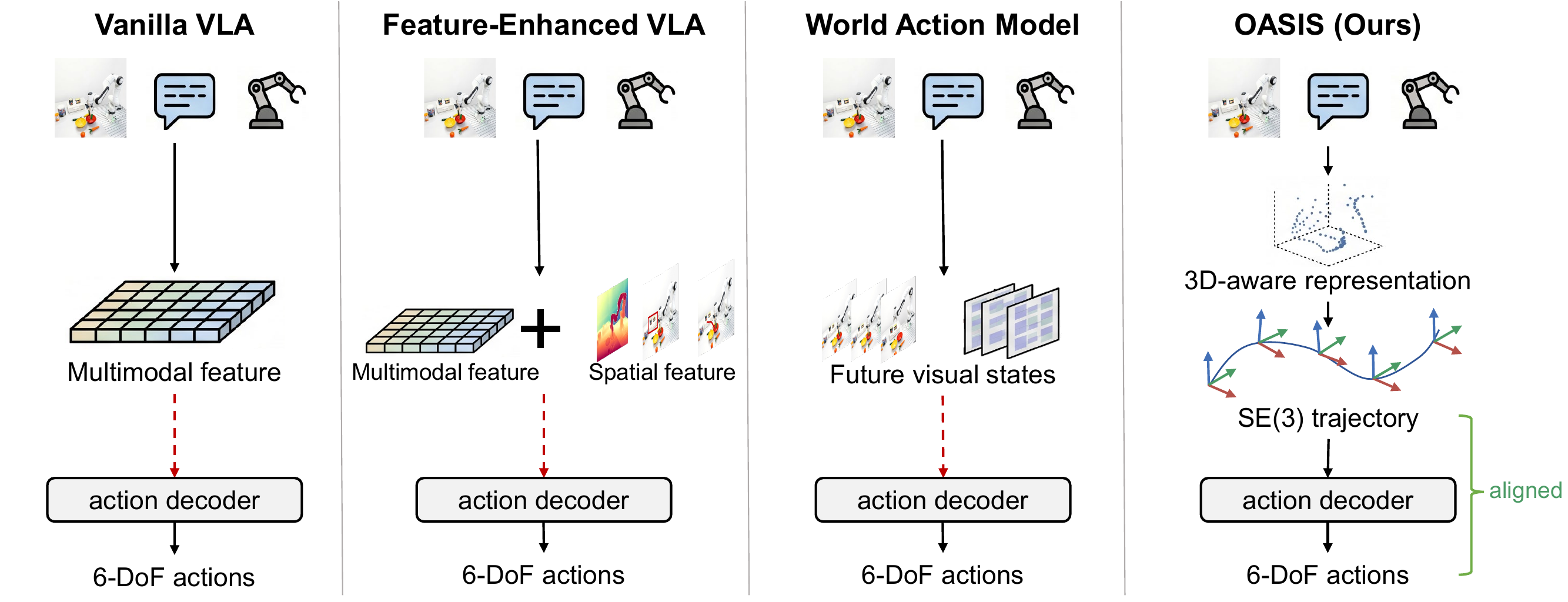

Comparison of existing visuomotor policies and OASIS

Abstract

Recent vision-language-action (VLA) models and world action models (WAMs) advance robotic manipulation by enriching intermediate representations with auxiliary spatial features or future visual-state prediction. However, these representations largely remain within the observation space and do not share the rigid-body geometry of the action space, forcing the action decoder to implicitly recover this geometry.

OASIS aligns the intermediate representation with the action space through \(SE(3)\) end-effector trajectory prediction. It couples a 3D-aware feature encoder that fuses vision-language and metric-depth features with a camera-frame \(SE(3)\) trajectory predictor. Conditioned on the predictor's pose-supervised hidden states, the action decoder generates action chunks consistent with rigid-body motion.

Across simulation and real-world experiments, OASIS outperforms VLA and WAM baselines in success rate and out-of-distribution generalization.

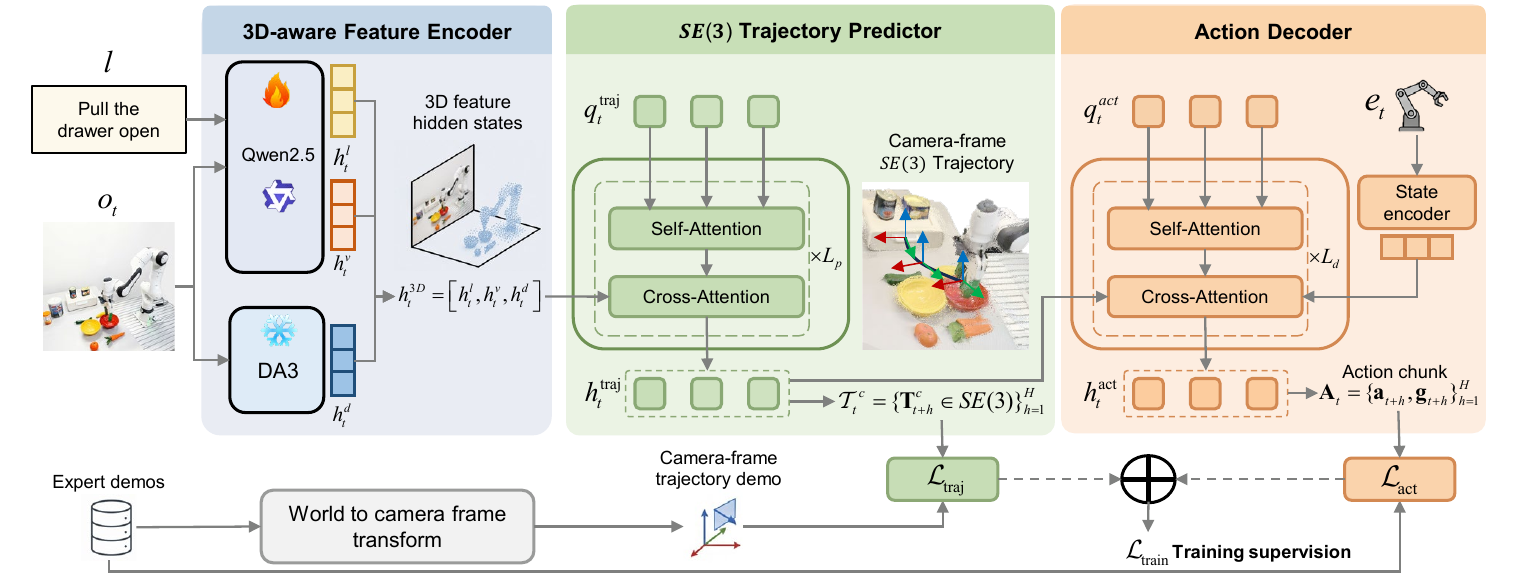

Method

3D-Aware Feature Encoder

Fuses Qwen2.5-based vision-language features with frozen Depth Anything 3 metric-depth features.

\(SE(3)\) Trajectory Predictor

Predicts a camera-frame \(SE(3)\) end-effector trajectory that provides pose-supervised hidden states for action decoding.

Action Decoder

Cross-attends to the pose-supervised trajectory states and current robot state to produce action chunks.

Results

Simulation Benchmarks

OASIS is trained without large-scale robotic pretraining and evaluated on LIBERO and CALVIN ABC\(\to\)D.

LIBERO
Method	Intermediate	Pretrain	Spatial	Object	Goal	Long	Avg.
SpatialVLA	Spatial features	Yes	88.2	89.9	78.6	55.5	78.1
WorldVLA	Future visual states	No	85.6	89.0	82.6	59.0	79.1
ThinkAct	2D-supervised features	Yes	88.3	91.4	87.1	70.9	84.4
\(\pi_0\)	Multimodal features	Yes	96.8	98.8	95.8	85.2	94.1
QDepth-VLA	Spatial features	Yes	97.6	96.6	95.2	90.0	94.9
UniVLA	Spatial features	Yes	96.5	96.8	95.6	92.0	95.2
Unified-VLA	Future visual states	Yes	95.4	98.8	93.6	94.0	95.5
OASIS	\(SE(3)\)-supervised features	No	99.0	98.8	97.4	95.2	97.6

CALVIN ABC\(\to\)D
Method	Intermediate	Pretrain	1	2	3	4	5	Avg.
SuSIE	Future visual states	Yes	87.0	69.0	49.0	38.0	26.0	2.69
3D Diffuser Actor\(^{\dagger}\)	3D feature	No	93.8	80.3	66.2	53.3	41.2	3.35
ReconVLA	Spatial features	Yes	95.6	87.6	76.9	69.3	64.1	3.95
Seer-Large	Future visual states	Yes	96.3	91.6	86.1	80.3	74.0	4.28
VPP	Future visual states	Yes	96.5	90.9	86.6	82.0	76.9	4.33
Unified-VLA	Future visual states	Yes	98.9	94.8	89.0	82.8	75.1	4.41
DreamVLA	Future visual states	Yes	98.2	94.6	89.5	83.4	78.1	4.44
OASIS	\(SE(3)\)-supervised features	No	98.1	94.9	91.7	88.9	83.3	4.57

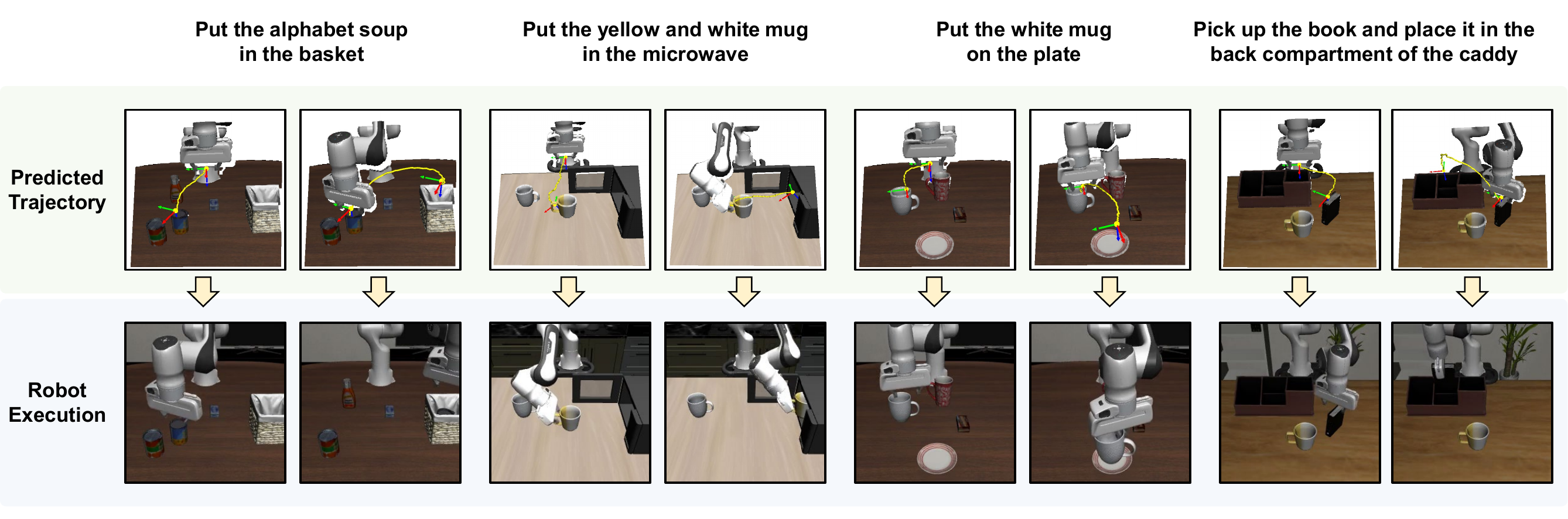

SE(3) trajectory prediction and robot execution visualization — Predicted translation waypoints and rotation axes closely track the executed end-effector path.

Real-World Performance

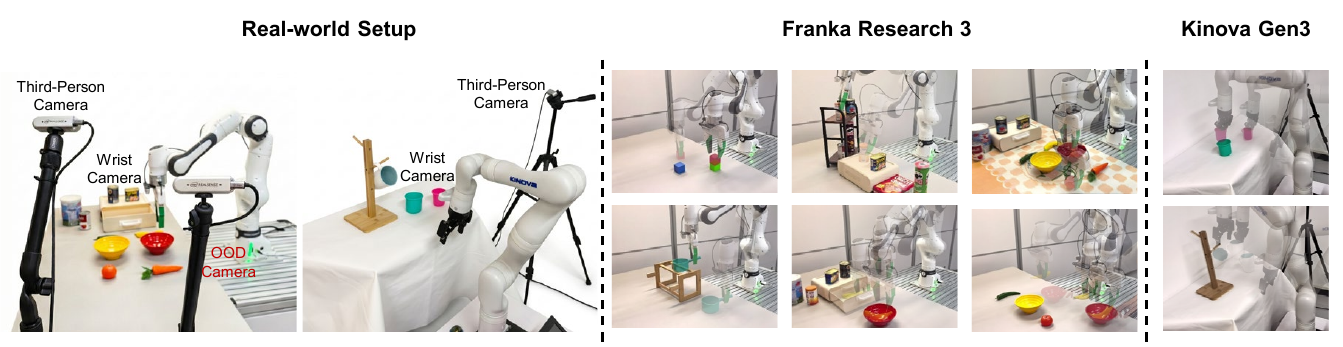

OASIS is evaluated on Franka Research 3 and Kinova Gen3 platforms across Goal, Spatial, Long, and OOD settings.

Demos

Simulation

LIBERO Long

CALVIN ABC\(\to\)D

Real-World Tasks

Goal

Place the banana into the red bowl

Place the banana into the yellow bowl

Place the carrot into the red bowl

Place the carrot into the yellow bowl

Place the orange into the red bowl

Place the orange into the yellow bowl

Spatial

Stack blocks

Build towers

Place pots on the wooden bracket

Put the orange can on shelves

Hang the cup

Place the cup

Long Horizon

Open the drawer and place the banana into the red bowl

Out-of-Distribution Real-World Settings

Unseen Backgrounds

Banana

Carrot

Orange

Human Interference and Camera Shift

Human interference: banana

Human interference: orange

New camera perspective: carrot

BibTeX

@misc{chen2026oasisobservationactionspacealignment,
      title={OASIS: Observation-Action Space Alignment via SE(3) Trajectory Prediction for Robotic Manipulation},
      author={Xinzhe Chen and Sihua Ren and Liqi Huang and Haowen Sun and Mingyang Li and Xingyu Chen and Zeyang Liu and Xuguang Lan},
      year={2026},
      eprint={2605.25829},
      archivePrefix={arXiv},
      primaryClass={cs.RO},
      url={https://arxiv.org/abs/2605.25829},
}
